特徴

仕様

Type: Centrifugal Fan

Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Construction worksÂ , Energy & Mining, Automotive

Electric Current Type: AC/DC

Blade Material: Plastic, Plastic

Mounting: FREE STANDING

Voltage: 115/230

Warranty: 1 Year

After-sales Service Provided: Online support

Size: Round 250x94 (mm)

Motor Type: AC Induction Capacitor

Speed: 2600-2800(rpm)

Maximum Airflow: 570-610 (cfm)

Bearing Type: Ball

Weight: 2090 (g)

Connecting: Lead Wire

証明: ce, UL, RoHS, TUV

基本情報

証明: ce, UL, RoHS, TUV

お支払配送条件

Packaging Details: Cartons

Supply Ability: 100000 Unit/Units per Month

製品の説明

ABOUT GULF ELECTRICS

Product Description

Model NO.	Rated Voltage	Frequency	Speed	Airflow	Static Pressure	Current	Power	Noise	Weight
	(VDC)	(HZ)	(RPM)	(CFM)	(mmAq)	(mA)	(W)	(dBA)	(g)

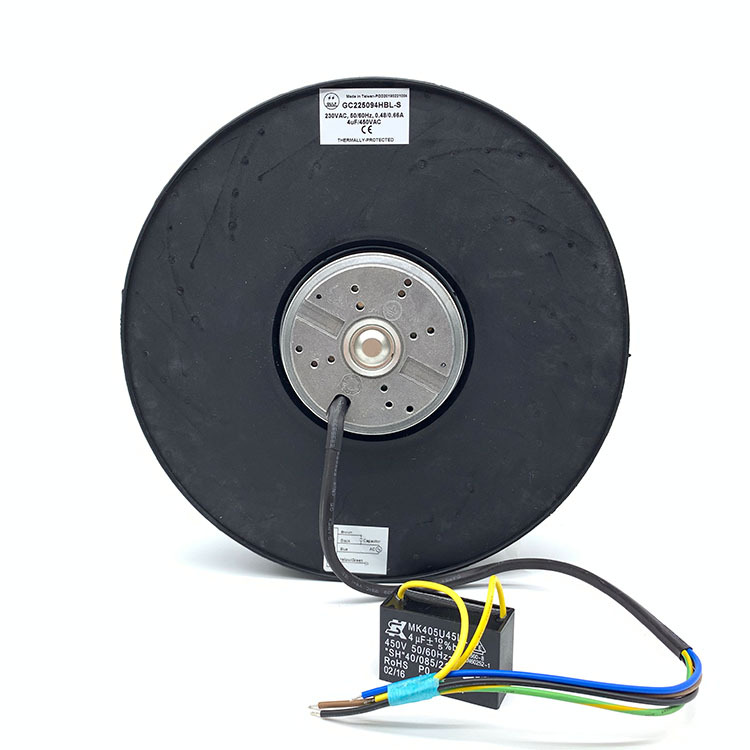

GC125094HBL-S	115	50/60	2600/2800	570/610	53/67	0.90/1.23	103/142	77.5/59	2090
GC225094HBL-S	230	50/60	2600/2800	570/610	53/67	0.48/0.66	106/148	77.5/79	2090
