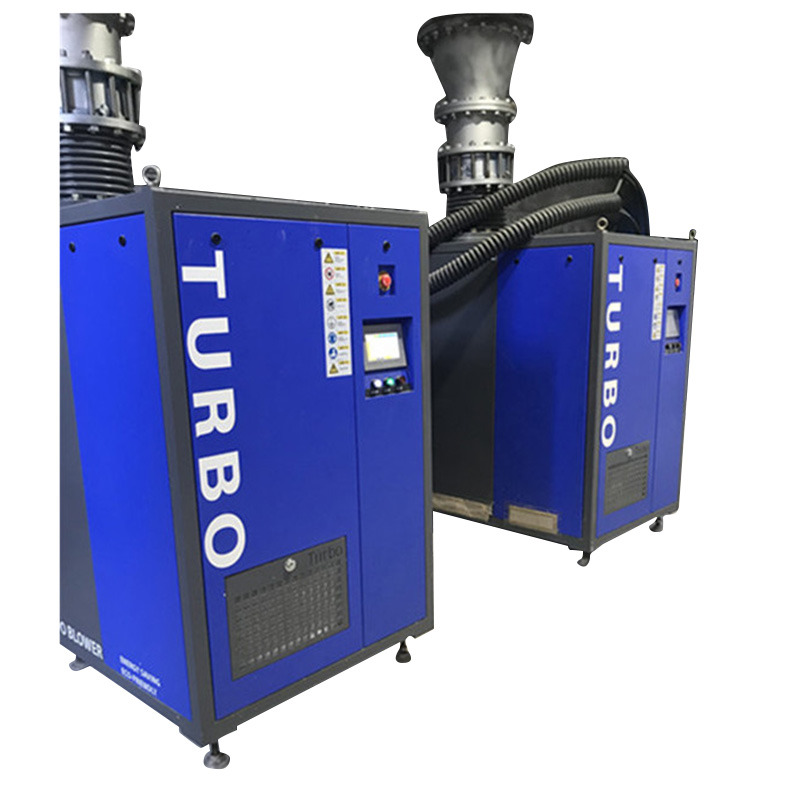

Factory High Efficiency Air Suspension Blower 400hp Turbo High Stability Centrifugal Blower

1 set
MOQ
Factory High Efficiency Air Suspension Blower 400hp Turbo High Stability Centrifugal Blower
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Type: Centrifugal Fan, industrial ventilation
Applicable Industries: Manufacturing Plant, steel mill, power plant, cement plant, flour mill, food factory, sewage discharge, paper making industry, printing&dyeing industry, chemical industry, Environmental protection industry, Electronics manufacturing industry
Electric Current Type: AC
Mounting: free standing
Model Number: TB400-0.7
Voltage: 380VAC
Warranty: 1 Year
After-sales Service Provided: Online support
Color: blue,grey
Motor: permanent magnet motor
Noise: low
Weight: 600~1500kg
Key Words: air suspension centrifugal blower
証明: ce
Motor type: PM
Material: Aluminium Alloy
Speed: high
基本情報
証明: ce
Model Number: TB400-0.7
お支払配送条件
製品の説明
Products Description
Anturbo air suspension centrifugal turbo blower is a kind of high-tech green energy saving and environmental friendly products. We adopt air foil bearing, high speed permanent magnet synchronous motor, ternary flow impeller, frequency converter speed regulation, intelligent monitoring and control and other core technologies. Due to its no vibration, no friction and no lubricating oil, the transmission loss is reduced. The ternary flow impeller adopts high-strength heat treatment of aluminum/titanium alloy AL7075, which improves accuracy and durability through 5-axis machining. The air suspension centrifugal turbo blower realizes the intelligent control of frequency conversion, which can realize the local and remote control. We now have different models from TB10、TB15、TB20、TB25、TB30、TB50 to TB75、TB100、TB120、TB150、TB200、TB250、TB300、TB400、TB600, the air flow varies from 7m³/min to 440m³/min, the pressure ranges from 30kPa to 200kPa, to meet the needs of different users. Compared with the traditional roots blower, air suspension blowers can save energy up to 30%-50%, the performance is more stable , and have a noise of less than 80 decibels. Widely used in sewage treatment, cement, paper, textile, aquaculture, steel, food, brewing, petrochemical, thermal power and other industries.
Product Parameters
Model
TB400-0.7
Colour
blue,grey
Key Words
air suspension centrifugal blower
Motor
permanent magnet motor
Application Occasions
municipal sewage treatment, paper making industry, chemical industry, cement and other industries
Certification
CE ISO
Types Of
industrial ventilation
Noise
low
Weight
600~1500kg
difference
Roots blower
Multistage centrifugal blowers
Air suspension centrifugal turbo blower



Principle
capacity type
Centrifugal type
Centrifugal type
Driving Method
V-belt
overdrive gear
Direct Attach
outlet pressure
0.6bar
0.6bar
0.6bar
Air flow
70m³/min
70m³/min
70m³/min
power
102kw
90kw
75kw
noise（@1m)
95~110dB
85dB
80dB below
vibration
max
less
none
lubricating oil
need
need
No need
Service life
10years
5~15years
semi-permanent
Advantage

Economical efficiency

Energy consumption can be saved by 20%~50% Procurement costs can be recovered within two and a half years Simple and convenient
maintenance, reasonable maintenance cost Air filter cotton quick-wear part

Environmental-friendly performance

100% oil-free system Low vibration, the noise is less than 80dB The operating environment is more peaceful

Convenience

Optimized motor speed control, with lower energy consumption to achieve ideal gas volume Various control modes and communication
modes Provide a full range of management solutions
Features
First of all, the air suspension blower adopts high speed permanent magnet motor air suspension bearing. The running speed of the blower can reach more than 40000 RPM, so the mechanical efficiency is high. Compared with the traditional fan, the energy saving rate can reach 35-45 percent.

Secondly, the air suspension blower adopts three dimensional flow impeller, the vortex shell adopts aviation aluminum alloy
material, and the air bearing is directly connected, with no mechanical friction, and the noise is only 75 dB to 80 dB (1 meter)
without the need for sound insulation cover.


The daily maintenance of the air suspension blower is convenient and the cost is low. It only needs to replace the filter of the air suspension blower regularly to filter the cotton. It has no oil operation, no vibration and the vibration value is 0.

Air suspension blower has the advantages of simple structure, small volume, space saving, easy to move and install, can be
operated remotely, monitoring, without going to the fan site, you can monitor the motor speed, air pressure, air volume, power,
temperature, filter dust and so on.
Company Introduction
Shanghai Anturbo Machinery Technology Co., Ltd., headquartered in Gwangju, Korea, is a professional manufacturer of air suspension centrifugal blower integrating research and development, production and sales. The equipments are exported to dozens of countries around togetherthe world, the company has more than 50 professional employees to provide customers around the world with rapid, accurate service.
The company's main products are TB series air suspension blowers and supporting filters. Compared with traditional blowers, air suspension blowers can save energy up to 30%-50%, the performance is more stable , and have a noise of less than 80 decibels.

By 2018, more than 2,500 pieces of machines from the Korean headquarters have been sold to more than a dozen of countries around the world, and about 95% of the products are sold to foreign countries. Leading by foreign trade, the company has been growing into a world-famous air suspension blower company.

The products have been widely used in municipal sewage treatment, power plant desulfurization, pneumatic conveying, biological pharmaceutical, petrochemical, textile printing and dyeing industries.

Shanghai Anturbo Machinery Technology Co., Ltd. adheres to the concept of "continuous innovation, leading development" and strives to create value for customers and develop with all new and old customers to create a better future together.
